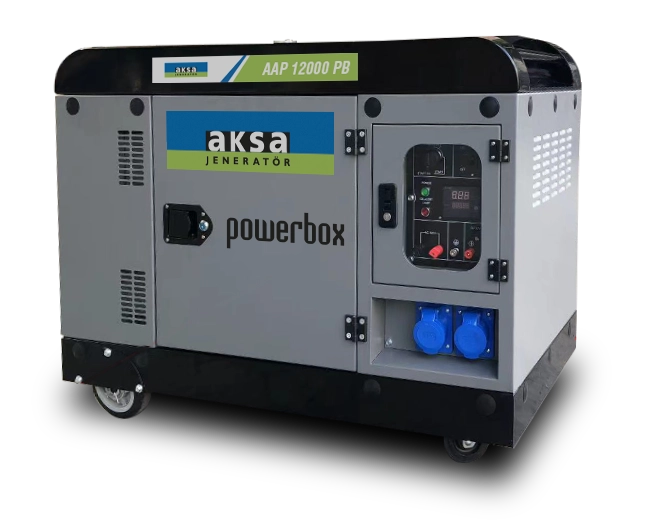

Single-phase power generator
Aksa AAP12000PB
list price
26.990 lei
5.509 euro
FEATURES
FUEL GAUGE
Fuel gauge is on the fuel tank
CIRCUIT PROTECTOR
Circuit Protector is a device capable of carrying and interrupting both load and fault current upto a certain rating.
OIL LEVEL ALARM
When the oil level is low that the engine will not start.
voltage of a generator.
LED DISPLAY
LED screen to monitor voltage and current with hourmeter
AVR
AVR is a device often solid state, for controlling the output
OUT PUT SOCKETS
2 x AC Output Receptacles
MAINTENANCE FREE BATTERY
It is long life
OIL BATH TYPE AIR FILTER
WHEEL KIT
For easy transportation
LARGE CAPACITY FUEL TANK
(Runtime may vary depending on fuel tank capacity)
GENERAL SPECIFICATIONS
Mono Phase, 50 Hz, PF 1
Rated Power (kW)
9.5
Maximum Power (kW)
10
AC Rated Voltage (V)
220
DC Rated Voltage (V)
12
Rated Current (A)
43.2
Frequency (Hz)
50
Number of Phase
1
Power Factor
1
Fuel Consumption %100 Load (L/h)
3.38
Fuel Consumption %75 Load (L/h)
2.58
Fuel Consumption %50 Load (L/h)
1.93
Noise Level (dB(A) 7m.) @
75
Number of Poles
2
Receptacle Sockets
220V 32A
ENGINE SPECIFICATIONS
Engine Speed (rpm)
3000
Power (HP)
15.6
Maximum Engine Output (kW)
11.5
Bore and Stroke (mm)
102×88
Compression Ratio
01:20
Number of Cylinders
1
Displacement (mL.)
718
Fuel Type
Diesel
Oil Capacity (L.)
1,65
Fuel Tank Capacity (L.)
30
Starting System
Electric
Cooling System
Air Clooed
Combustion System
Direct Injection
Battery Capacity
30AH
Protection
IP23
DIMENSIONS AND WEIGHT
Width (mm.)
735
Length (mm.)
1120
Height (mm.)
860
Weight (kg.)
240
